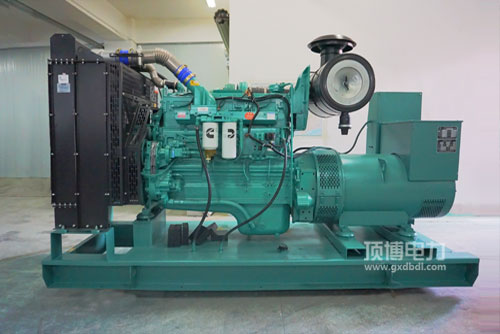

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用起驱动力气油经济增长性好: 现代化的气油调整系統的，独具特色的STC、ESTC 分级管理调整系統的，特殊性构思的活塞杆顶上复燃室，油田输送气油，充沛吸雾，复燃充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用热车机瞬态性能参数非常好的: 完全的热车机整体结构设汁，配合康明斯有趣的EFC模式，调整gps精性高，响应的日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用打着机升功效高: 全局定制紧密.外观简约时尚摆设适宜，电脑运行平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50能够满足在我国非道路上3、阶段中及北美洲Tier2. Tier 3减排法律标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件即得性好， 启动因进行及保护的保养便利店，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率范围之内 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表厚度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯并网发电用热车机的优点：质量分数小， 压缩成比较高， 格栅价格氧气电加热，非常易初始化，运动车载多媒体电的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机尺寸	经常用热效率(kW)Prime Power	自备马力kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
